CA5001
The analogue multimeter for any site
The C.A 5001 is a competitively-priced analogue multimeter, designed to satisfy all the current measurement requirements of electricians and electrotechnicians.

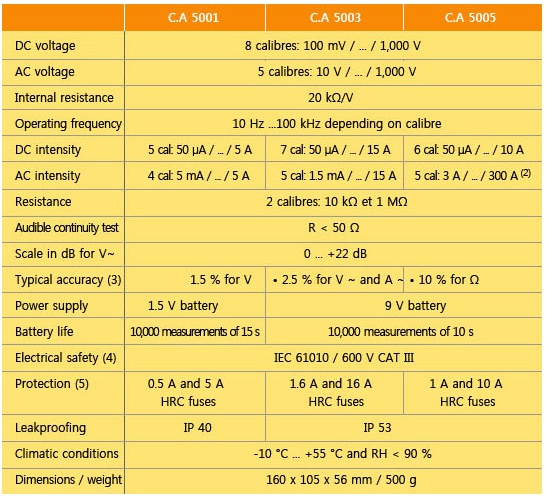

* DC voltage: 100mV to 1,000V (8 cal.)
* accuracy 1.5% except 100mV cal.(2.5%)
* AC voltage: 10V to 1,000V (5 cal.),
* bandwidth [20Hz-100kHz] at 10V,[20Hz-1kHz] at 300V and 1,000V
* accuracy 2.5% except 100mV cal.(3%)
* DC intensity: 5μ to 5A (5 cal.)
* AC intensity: 5mA to 5A (4 cal.)
* bandwidth [40Hz-5kHz], Accuracy 2.5% except 5A cal.(5%)
* typical accuracy: 1.5%. Impedance: 20kΩ/V
* resistance: 10kΩ and 1MΩ
* audible continuity test: R < 50Ω
* dB scale (AC voltages). Fuse LED
* dimensions: 160 x 105 x 56mm. Weight: 500g
* IEC 1010-1 600V Cat III
