RN5306
.jpg)
2,000 points
Protected for field use
Multi-purpose instrument for measurement of loop resistance, insulation resistance and DC / AC voltage
The safety ohmmeter RN 5306 has been specifically designed for ultra-safe resistance testing on explosive devices (i.e. sq uibs, detonators...). The instrument has the unit's circuitry reviewed and approved by Armed Forces for military programs.
RN 5306 instruments is the perfect tool to control pyrotechnical devices, is dust proof ans watertight (IP 65) due to a moulded thermoplastic casing. Several ranges from 10 mΩ (resolution) to 2 MΩ using 4-wire (up to 2KΩ) or 2-wire configuration with built-in line adjustment.

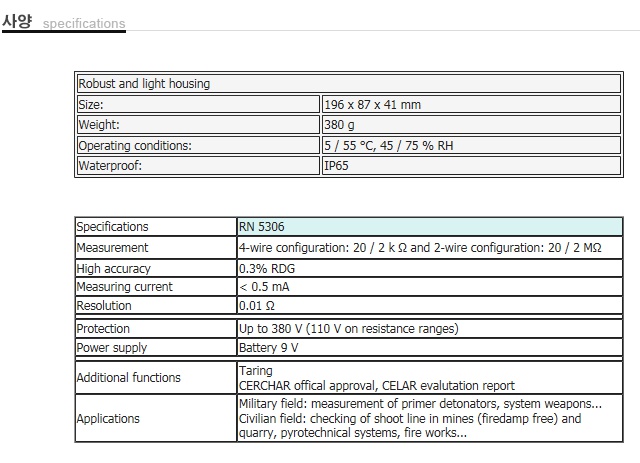

.jpg "2(354).jpg")
