F65

aa

  • 1(611).jpg
상담신청하기





NEW



To check leakage currents quickly and locate insulation faults in live installations!


TThe F65 clamp-on meter is the ideal tool to detect insulation faults and untimely tripping of RCDs caused by leakage currents.
It also provides all the functions of a clamp-on multimeter.

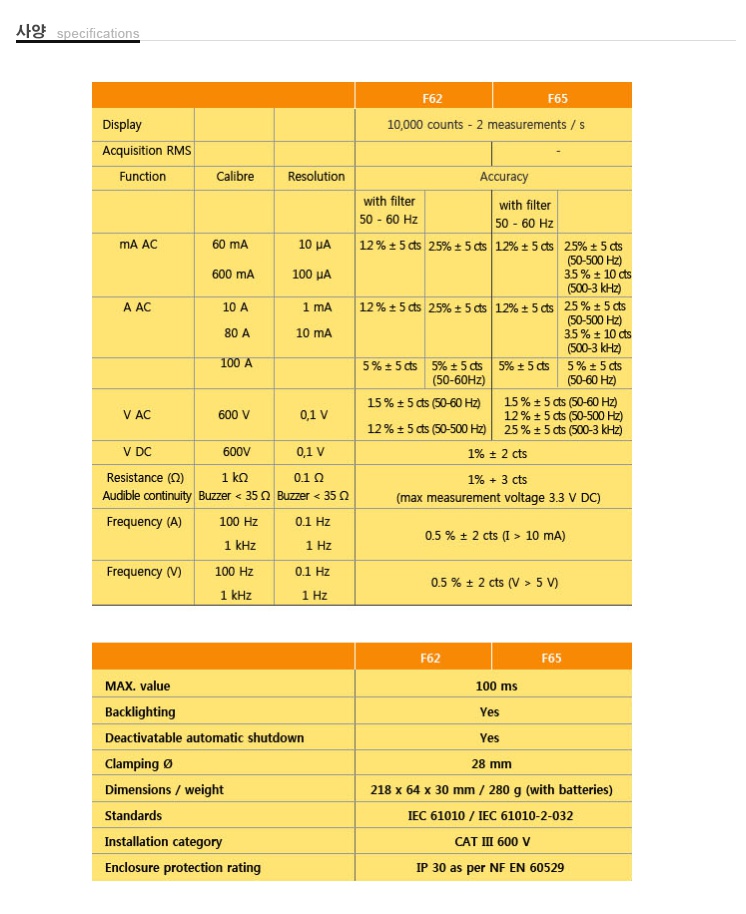

* RMS measurement

* resolution: 10μA
* strong immunity to spurious currents: 70dB

* 50/60Hz harmonic filter
* current: 30μA to 100A AC
* AC/DC voltage: 0.1V to 600V
* frequency: 5Hz to 1kHz
* resistance: 0.1Ω to 1kΩ
* audible continuity: <35Ω
* backlit display: 10,000 counts
* functions: max. and Delta; display meomorization
* battery life indicator light; automatic power off
* dimensions: 218x64x30mm
* weight: 280g
