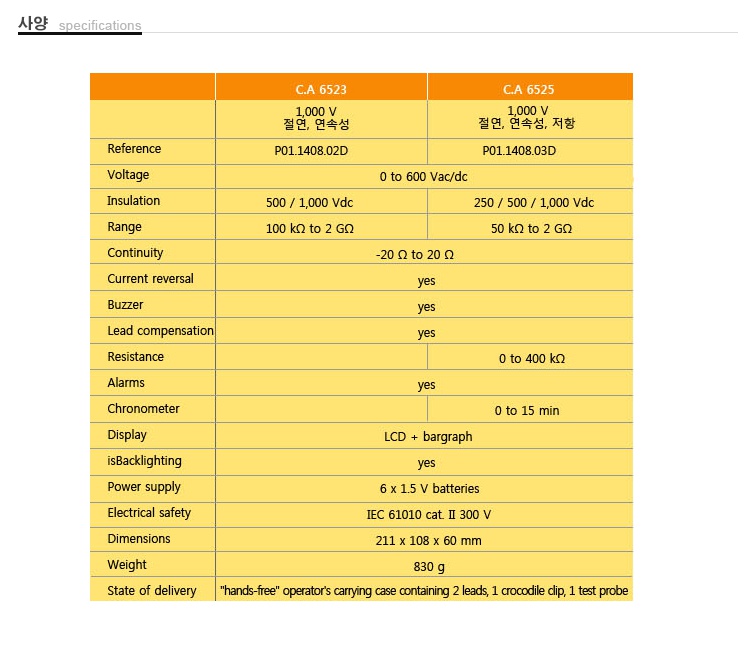

Particularly innovative and user-friendly, the C.A 6523 insulation tester is ideal for testing electrical installations and equipment:

* insulation: up to 2GΩ at 500V and 1,000V DC
* voltage indication before insulation measurement: 0 to 600V AC/DC (blocking if U>25V)
* continuity: -20Ω to +20Ω (audible beep and compensation of leads)
* resistance: 0 to 400kΩ

* giant 4,000-count display + bargraph (simultaneous reading of the measurement and analogue variance)
* backlit display
* programming of alarms
* remote control probe available as an option
* back stand for use on a table or on the ground
* long battery life: 6 x 1.5V batteries
* measurements in compliance with IEC 61557, NF C 15-100, VDE 0413
* electrical safety: IEC 1010 600V Cat II
* dimensions: 211 x 108 x 60mm; weight: 830 g
