NEW

5 tools in 1 with this tester

This tester guarantees reliable measurements:
*  through the use of traditional rod methods
*  by self-diagnosis at the start of each measurement which indicates the presence of any faults
  liable to affect the measurements (poor connections or presence of interfering signals)
*  by extensive measurement ranges: 0.001 W to 100 kW
*  by analysing the frequency behaviour of the earthing systems (from 41 Hz to 5 kHz)

The C.A 6472 is eqipped with high-level, expert calculation capabilities:
*  for earth coupling measurement, it proposes to carry out the 3 measurements necessary and
  automatically calculates the coupling coefficient
*  for soil resistivity measurement, all you have to do is program the distances used for the
  measurement and the tester will then calculate r using the Wenner or Schlumberger method.

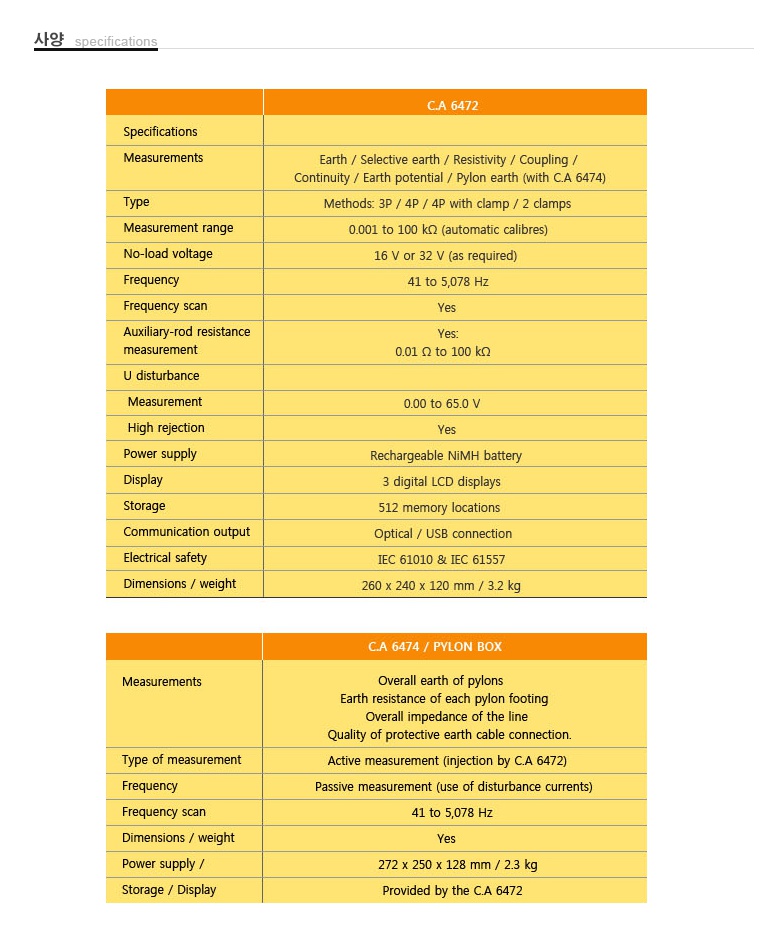

Other specifications:
* IP 53 leakproofing
* Electrical safety: CAT IV 50 V as per IEC 61326-1 / IEC 61010 / IEC 61557-1-4-5
* Dimensions: 272 x 250 x 128 mm
* Weight 3.2 kg
