CA6412
.jpg)
.jpg "2(470).jpg")
The ideal measuring instrument for parallel earth networks, the C.A 6412 earth clamp is ultra-fast and safe; it not only tests earth loops quickly but also measures leakage current discharging into the earth.
* resistance: 0.10Ω to 1,200Ω (7 cal.)
* RMS leak current: 1mA to 30.00A (3 cal.)
* clamping diameter: 32mm
* measuring frequency: 2,400Hz
* power supply: 1 x 9V battery for a service life of 1,500 x 30-sec measurements
* battery charge level and remaining battery life indication
* visual indication of anomalies such as significant spurious currents or incorrect closure of jaws
* measurements in compliance with NF EN 61010
* electrical safety: EN 61010 cat.III 150V
* dimensions: 235 x 100 x 55mm; weight: 1kg

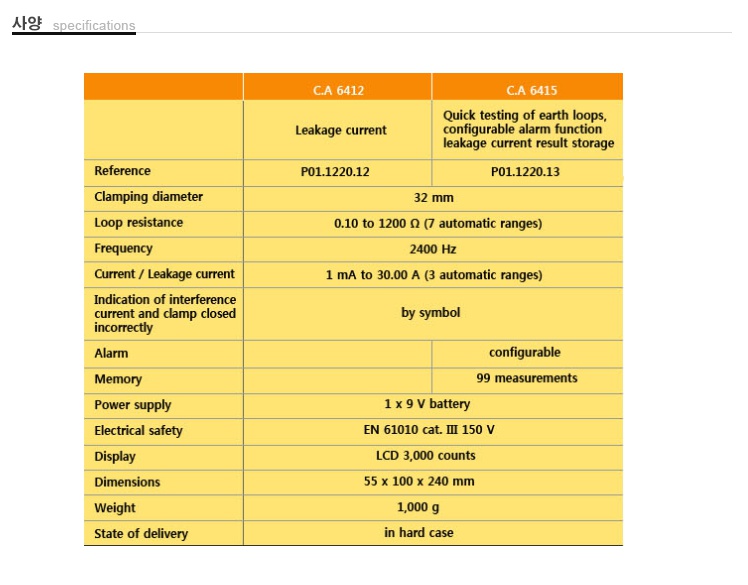

.jpg "3(39).jpg")
