Quick testing of earth loops

The ideal measuring instrument for parallel earth networks, the C.A 6415 earth clamp is ultra-fast and safe; it not only tests earth loops quickly but also measures leakage current discharging into the earth. The C.A 6415 is the top-of-the-range model; it has a programmable alarm and a measurement memorisation function.

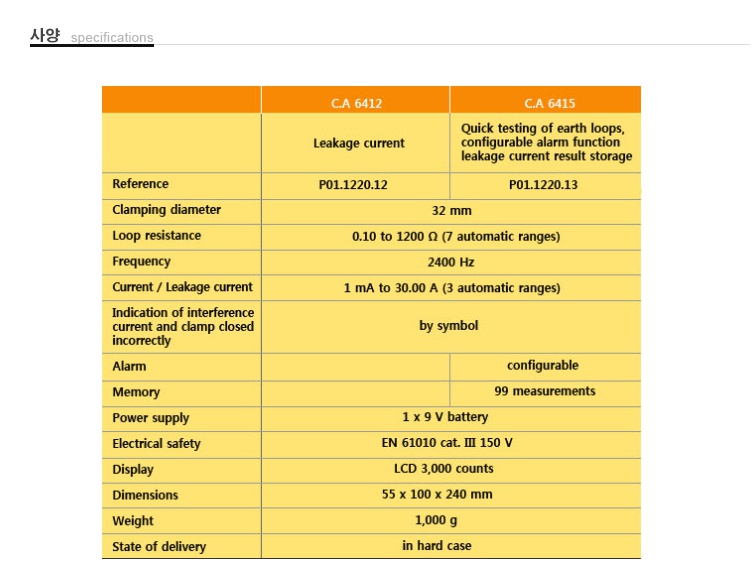

* resistance : 0.10Ω to 1,200Ω(7 cal.)
* RMS leakage current: 1mA to 30.00A(3 cal.)
* alarm function: programming of the alarm threshold in Ω
* 99-measurement memory capacity: recording and read-off
* clamping diameter: 32mm
* measuring frequency: 2,400Hz
* power supply: 1 x 9V battery for a service life of 1,500 x 30-sec measurements
* battery charge level and remaining battery life indication
* visual indication of anomalies such as significant spurious currents or incorrect closure of jaws
* measurements in compliance with NF EN 61010
* electrical safety: EN 61010 cat.III 150V

* dimensions: 235 x 100 x 55mm; weight: 1kg
