유도 용량 박스
NEW

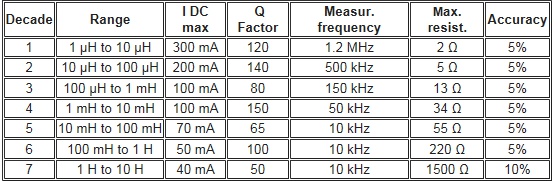

7-decade inductance box BL07
- Inductance with custom-wound ferrite core, ensures a high ‘Q’ factor, typical 55 to 100.
- The voltage applied depends largely on the frequency of use. The voltage must be limited to
prevent saturation of the core and overheating.
- Connection: safety terminals Ø 4 mm
- Front panel and metallic box connected to a safety earth socket with failsafe system
- Dimensions: 410 x 90 x 80 mm Weight: 1.4 kg
.jpg "3(89).jpg")
