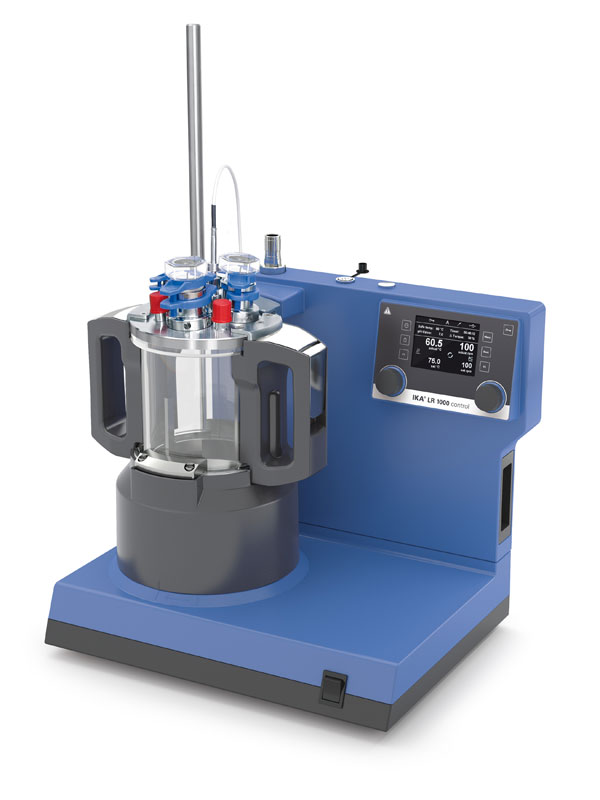

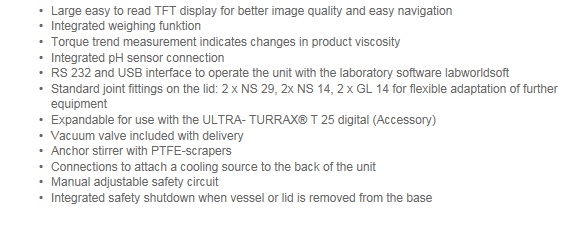

The LR 1000 control is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The system can be adapted quickly and easily for a wide range of applications and specific requirements. The reactor is especially designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.5 temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package. Prominent features of the LR 1000 control system are the integrated pH sensor connection and the display interface. The latter allows for the display of all process-relevant data onto a PC, save data storage and control of the reactor. The software (accessory) allows for further adaptation of the overall system and processes.
Metals in contact with medium: stainless steel ( ALSI 316 L), FFKM, PTFE, PEEK, borosilicate glass 3.3
