THE REFERENCE - 3-YEAR WARRANTY

Particularly complete for efficient electrical diagnosis

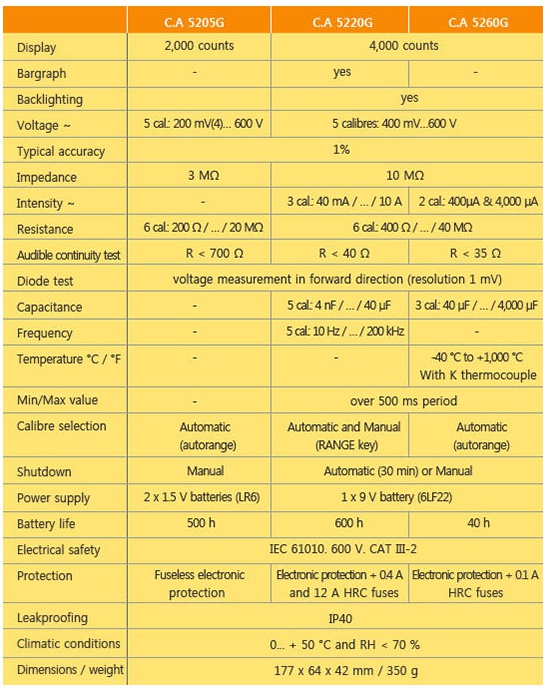

The C.A 5220G is a fully-automatic, 4,000-count digital multimeter + bargraph for use on any site.
 It covers all types of measurement and has many convenient functions (backlit display, hold, Min/Max,..); it soon becomes a must for every kind of diagnosis.

* AC/DC voltage: 400mV to 600V (5 cal.)
* bandwidth: 40Hz-500Hz except 400mV cal. (100Hz)
* typical accuracy of 1%+/-1ct for DC, 1.5%+/-1ct for AC
* AC/DC intensity 40mA to 10A (3 cal.)
* typical accuracy of 1.5%+/-1ct for DC, 2%+/-2cts for AC
* frequency 1-100Hz to 200kHz (5 cal.)
* resistance: 400Ω to 40MΩ (6 cal.)
* audible continuity test (R < 40Ω)
* typical accuracy: 1%. Impedance: 10MΩ (Velec low impedance of 270kΩ)
* 4,000-count backlit display (10mm digits )
* 40-segment bargraph
* HOLD / Range / Min. Max. functions
* diode test
* capacitance: 4 to 40μF (5 cal.).
* multi-purpose shockproof sheath
* electrical safety: IEC 1010 -1 600V Cat III
* dimensions: 177 x 64 x 42 mm - weight: 350g
